Bafang M620 mid drive system MM G510.1000 48v 1000w torque sensor mid drive motor kit with DP C18.UART color LCD display

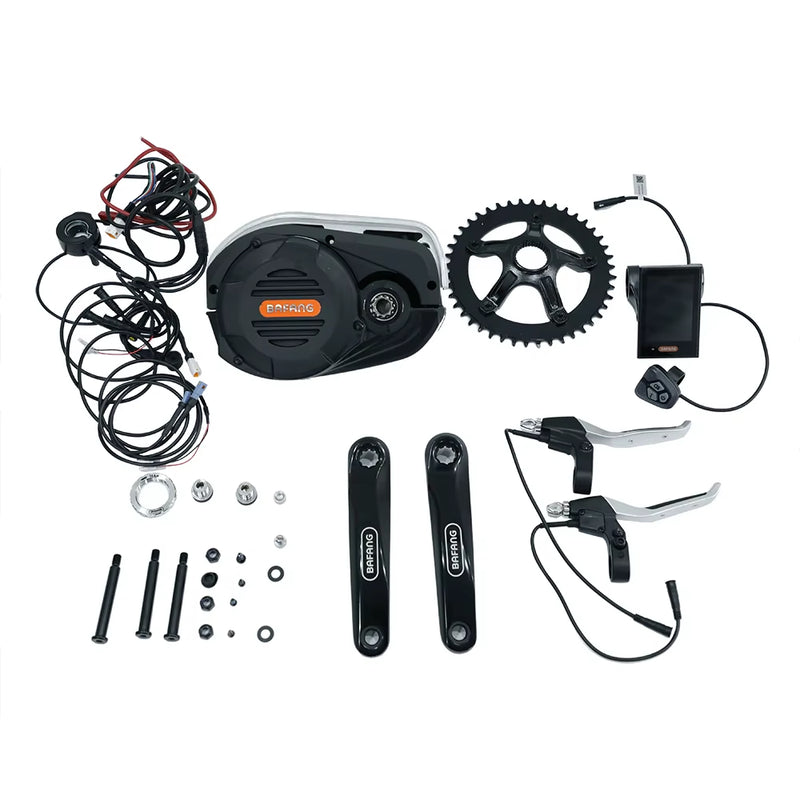

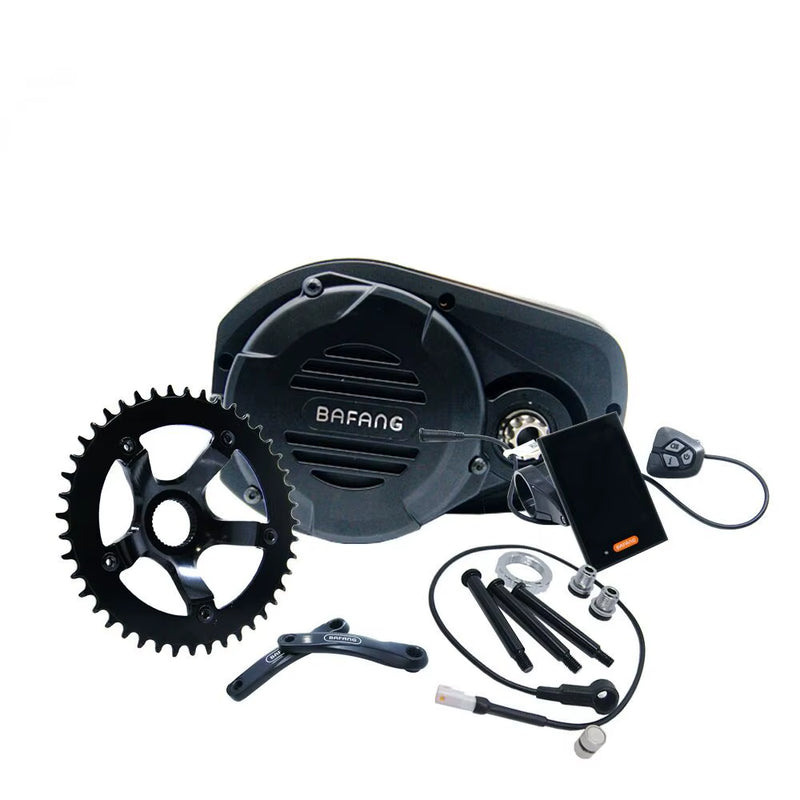

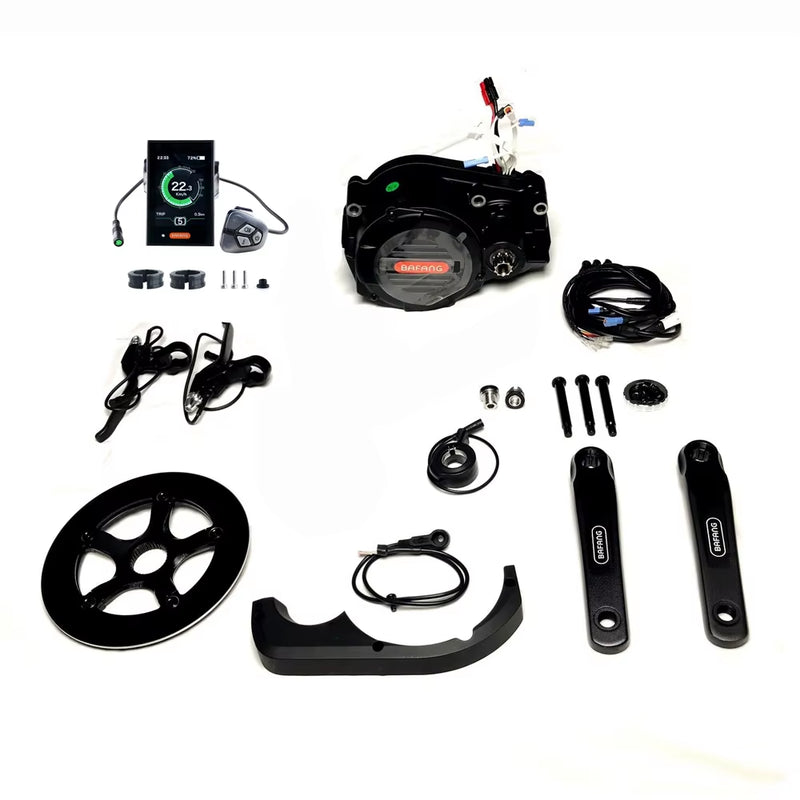

Complete kit:
1x Mid Motor (Integrates Controller)
1x DP C18.UART LCD Display
1x 44T Chain Wheel
1x Speed Sensor and Magnet
1x Screws

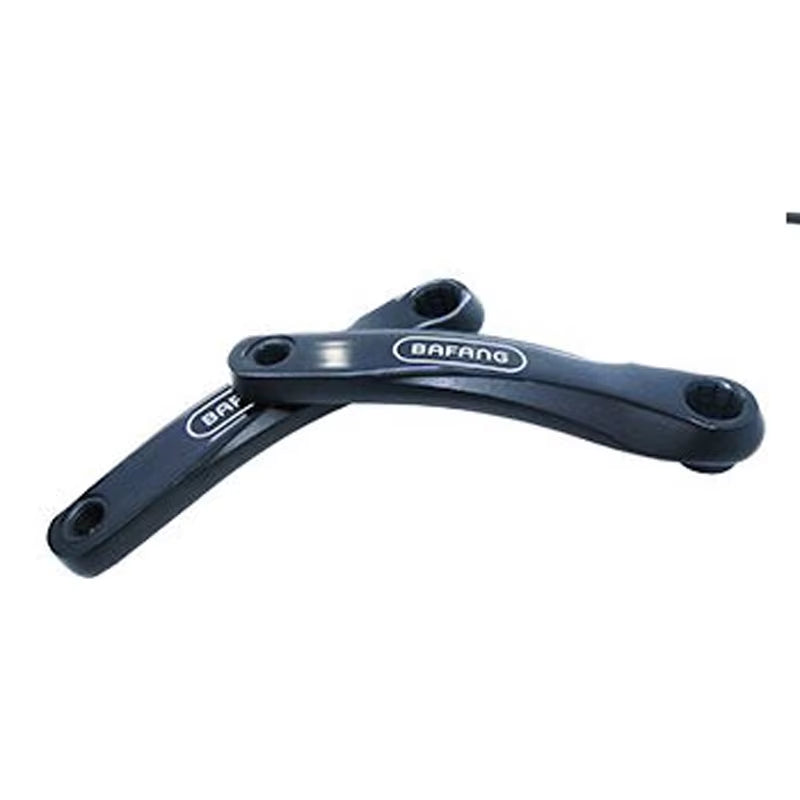

2x Crank
1xThumb throttle(optional)
2x Brake levers(optional)
1x Aluminum alloy adaptor holder welding on frame
SPECIFICATIONS
| Position | Mid motor | Wheel diameter(inch) | Optional |
| Construction | Gear drive | n0(Rpm) | 43/48/60 |
| Rated power | 1000w | nT(Rpm) | 150/170/210 |
| Max Torque | 160 N.m | Efficiency | ≥80% |
| Pedal sensor | Speed sensor and torque | Shaft Standard | ISIS |
| integrated |
| Weight | 10KG | Noise Grade | <55 |
| Operating Temperature | -20℃-45℃ | Color | Black |
Detailed Image

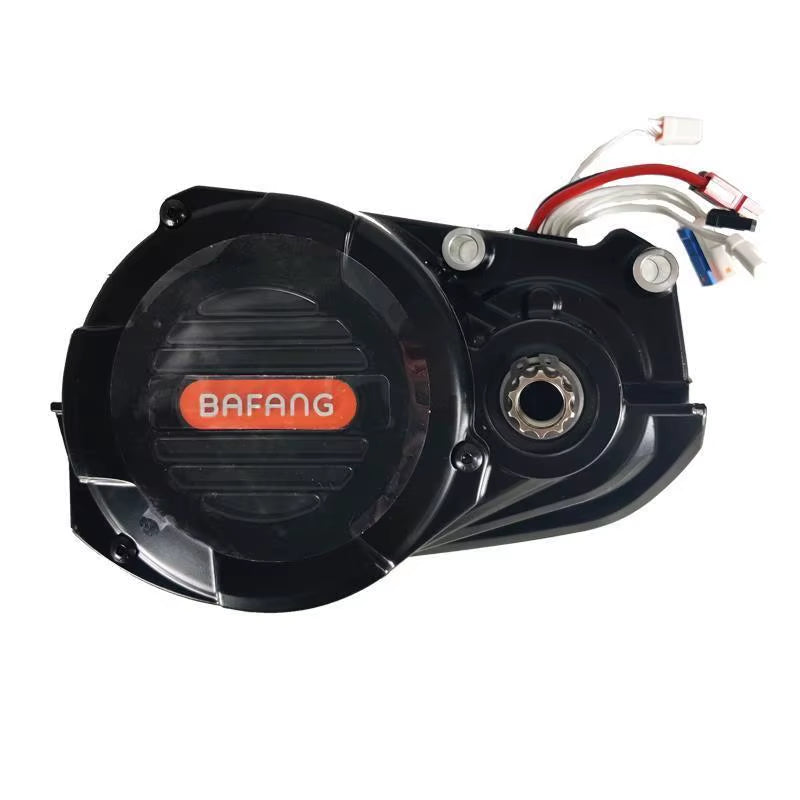

G510 Mid motor
The mid-drive motor constantly samples relevant information at a frequency of up to 80k Hz via a torque sensor and two speed sensors which are all highly sensitive.

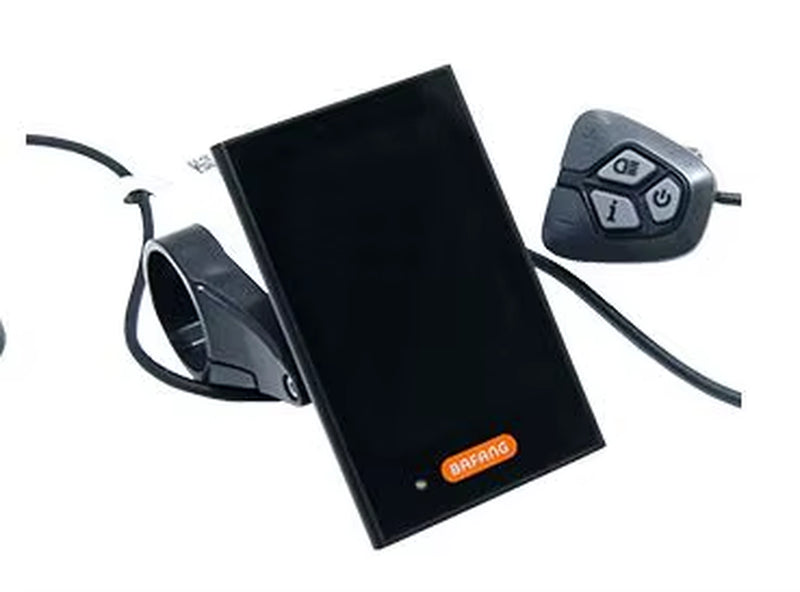

DPC-18 Color Display
LCD display looks fashionable and have more functions.Set relevant parameters, like rim size,speed limited,password.... When you cycling, it also can tell you the speed,time,range,temperature...It can show the controller and battery information.
Chain wheel
G510 chain wheel is usually 44T, which helps you ride smoothly. We provide mountain bike type and snow bike type, which are different. When you want to order it, pls tell me know your bike type.

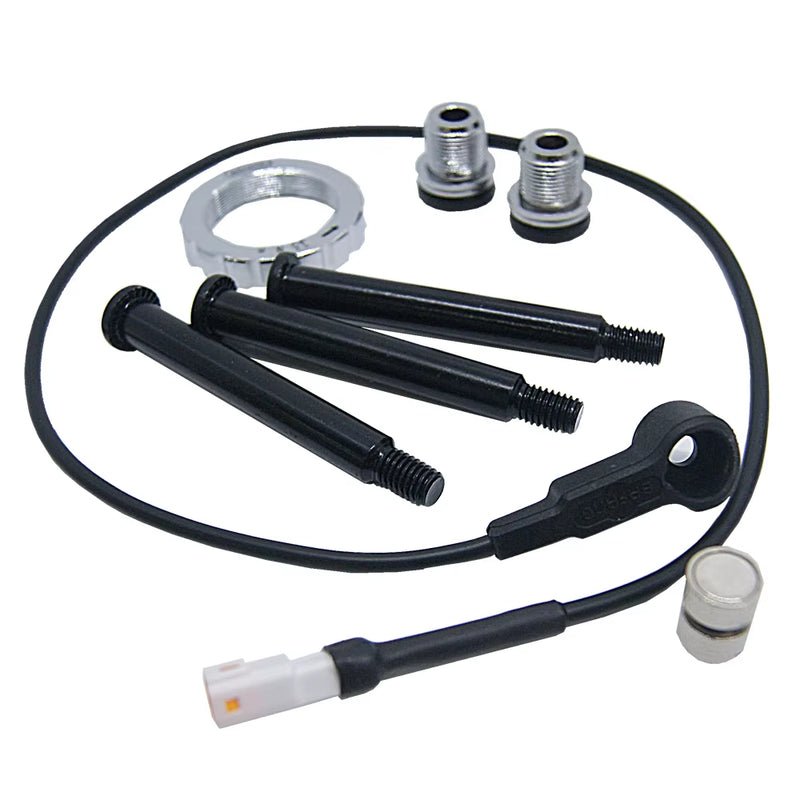

Screws and nuts
First fix the hager onto your fram, then using the screws and nuts to fix the mid motor. Install the magnet to your rear wheel rim.
FP G510 Frafe welded aluminum alloy adaptor Wholesale new aluminum26/ 27.5 / 29r Bafang mid drive motor frame, full suspension mountain electric bike frame
| Ouka ebikes 48V/52V 1000W G510 Full Suspension |
| Electric Bike Frame |
| Item name |
| Motor | Bafang MM M620, 48V/52V 750W/1000W |
| Wheel | 27.5''/29'' |
| Head set size | 1-1/8" to 1-1/2",φ28.6x44-55x30 or 39.8 (bottom) mm H: 7.5+2.8=10.3+1 mm |
| F/R hub size | F:15x110mm/R:12x148 mm |
| Rear thru axle | 12x175mm |
| Rear Suspension eye to eye x travel | 190 × 45 mm ( 7.48 × 1.77 inch) |
| Seat post diameter | 30.9mm |
| N.W./ G.W. | 5kg/6kg |
| Package size | 1pc/ctn, 118x22x60cm |
| Rest components are optional. |
| The logo is customizable. |

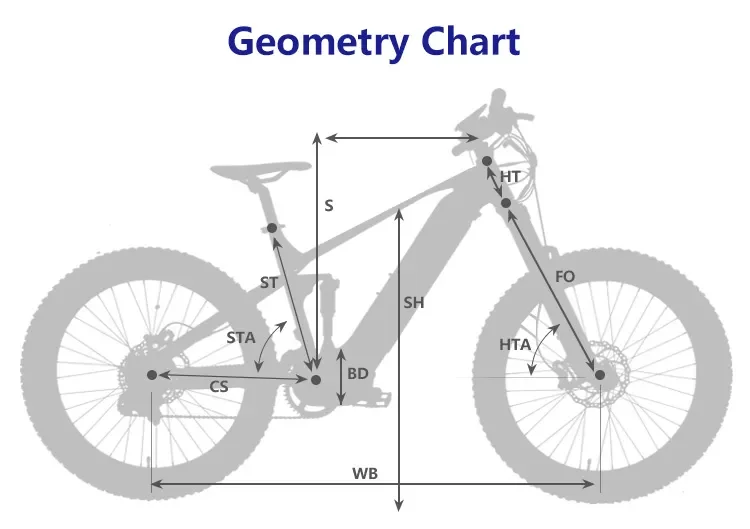

| Size | ST | CS | HTA | STA | BD | HT | WB | S/SH | FO |
| M | 457 | 500 | 65 | 73 | 160 | 130 | 1315 | 627/745 | 568 |
| L | 495 | 500 | 65 | 73 | 160 | 130 | 1315 | 627/745 | 568 |
Battery and charger
About the other types case: forg battery, downtube battery, rear rack battery, bag battery click the following picture to the catalogue select more.
Package
Package size: 54 x 32 x 25CM
GW: 10KG

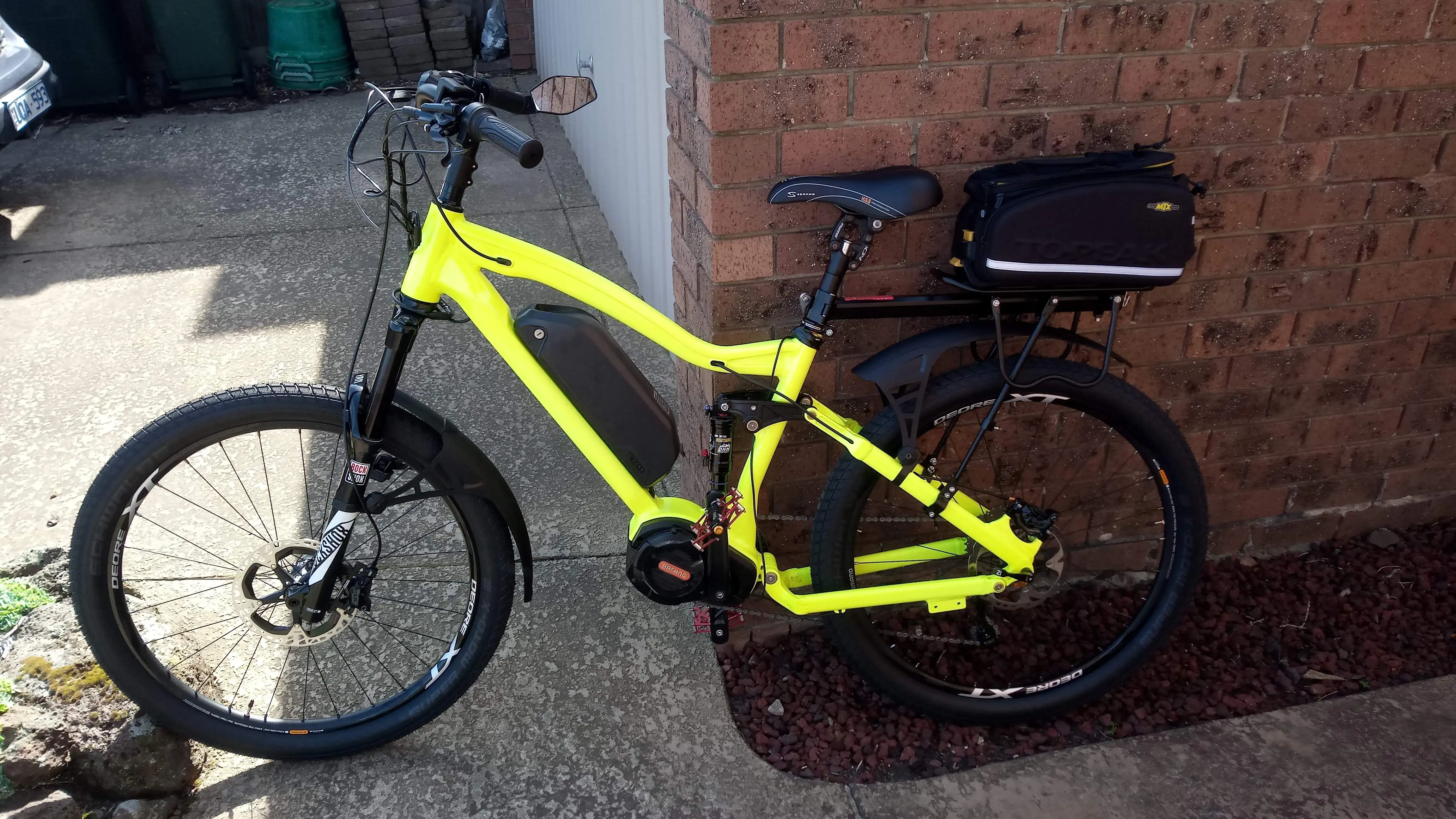

Coversion example and feedback from customers.
Fat tire ebike
Front & rear drive hub motor electric bike conversion kit
Click the following picture to see the detail.
